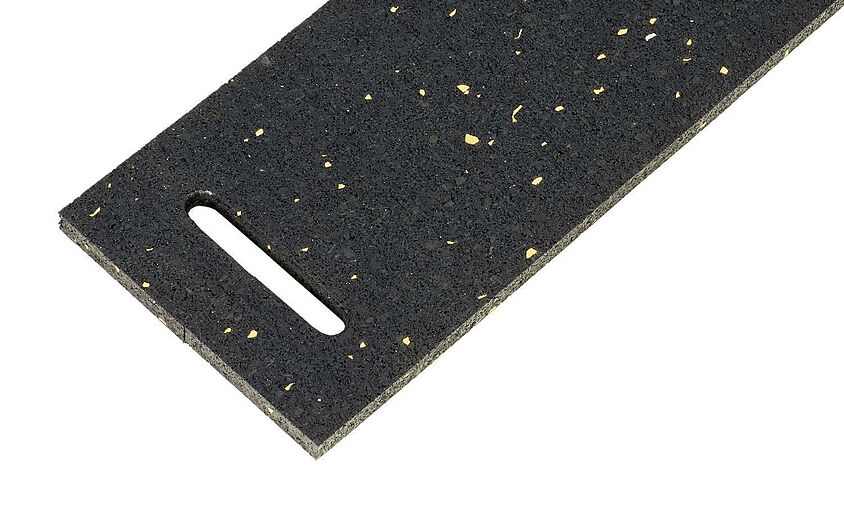

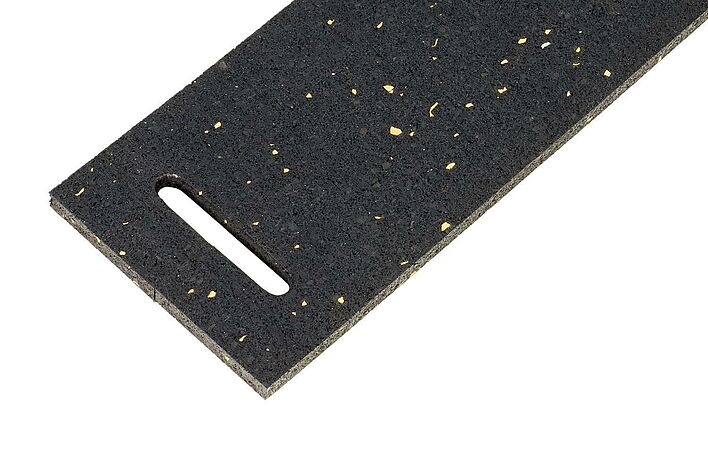

REGUPOL cargo tool GBS

Accessories

REGUPOL cargo tool GBS

Accessories

This load securing tool is for protecting tensioning belts and increases and compensates tension belt force distribution.

The REGUPOL cargo tool GBS webbing protector has three functions in one:

  • lt ensures that well-functioning tension belts do not wear, fray or even break on the edges of the loads.
  • The belt's flexibility enables it to adapt perfectly to the angles of the load edges, leaving no hollow space underneath the belt.
  • lt ensures that its smooth top surface increases the transmission value k, which is used as the basis for calculating the load securing rate of 1.8.

This means that in most cases, it's not necessary to use a second ratchet on the other side of the load. However, please make sure that the edge protector is not inadvertently fitted with the upper side facing downwards and always take the relevant transfer factor into account.

REGUPOL cargo tool GBS

Adapts it perfectly to the edges of the load

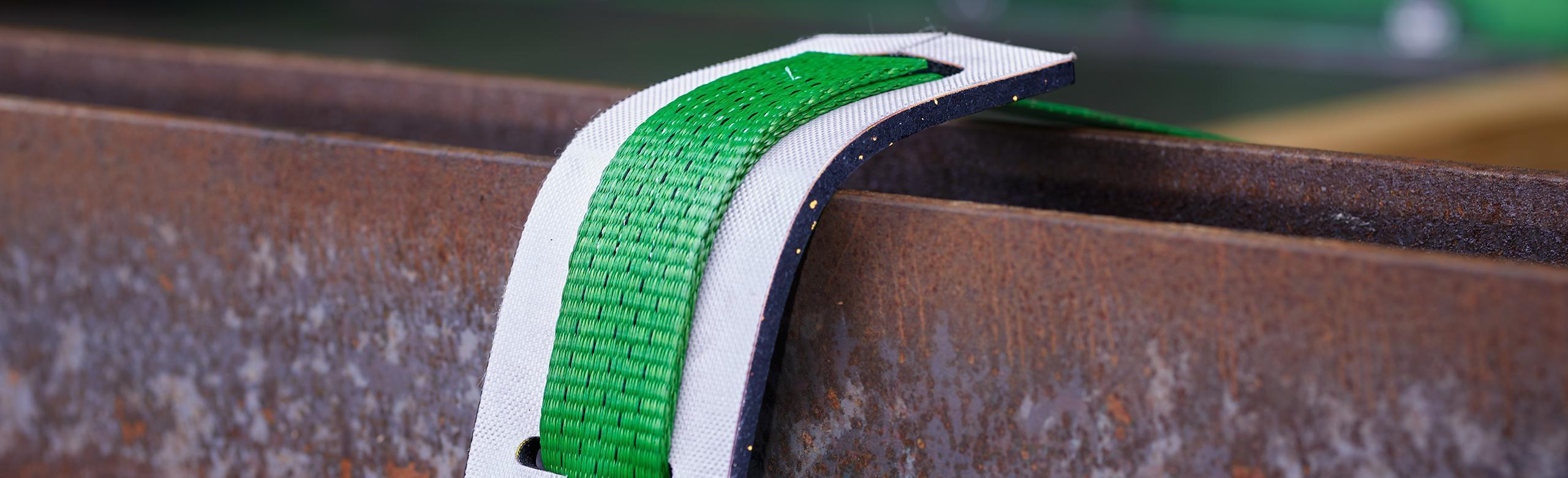

The REGUPOL cargo tool GBS provides wear protection for the tension belt, increases and compensates the belt's force distribution and adapts it perfectly to the edges of the load.

REGUPOL cargo tool GBS

REGUPOL cargo tool GBS

Load securing tool for protecting tensioning belts

REGUPOL cargo tool GBS

REGUPOL cargo tool GBS

Load securing tool for protecting tensioning belts

REGUPOL cargo tool GBS

REGUPOL cargo tool GBS

Load securing tool for protecting tensioning belts

Features


  • Reusable, long-lasting, resilient
  • Smooth, low-friction surface
  • Easy disposal

Technical Specifications


Application

When lashing down the load, they are placed underneath the tensioning belts over the edges of the cargo.

Dimension

250 x 100 x 8 mm

Material

Underside: REGUPOL cargo mat 1000® elastomer compound anti-slip mat made of synthetic rubber and polyurethane.
Top side: smooth, low-friction technical fabric made of polyester, special high-strength adhesive.

Calculated force transmission value

Transmission value k = 1.8 when using only one ratchet,
in acc. with VDI 2700

Julia Irle

Your contact at REGUPOL

We're here to help.

Julia Irle
REGUPOL BSW GmbH
Sales Manager International

This is REGUPOL safe

lts robust underside, smooth upper surface and its flexibility give our belt protector REGUPOL cargo tool GBSa triple safety bonus: lt protects the tensioning belt against wear, increases and compensates tension belt force distribution, as well as adapting optimally to the load edges. The bright color of the belt protector's top side makes it easily recognisable, even in bad light. Robust and flexible with a smooth, low-friction surface: this intelligent combination makes our belt webbing protector REGUPOL SAFE.

REGUPOL calculation service

Our free, flexible and tested easy LaSi software allows you to calculate your load securing quickly. And with our multi-language, user-friendly…

read more

What to do during safety checks

Our short, easy-to-understand information leaflet acts as a kind of personal assistant for traffic controls and spot checks. lt informs your drivers…

read more
